Verandah Curved

Outback® Curved

When attached to the home, the curved roof can span up to 6.6 metres wide in both Multispan and Clearspan designs. When combined with flat roof or pergola sections it becomes part of a system, with the elegant curved roof forming the central feature of the verandah design. Outback Rooflites are also available to supply natural filtered light when Outback Deck is used in Clearspan designs.

Stylish & Versatile

The Outback Curved Roof provides a stylish alternative to the Outback Gable. Its smooth clean lines add a contemporary look to the home.The height of the unit is approximately one eighth of the opening width. This creates a smooth curve which cleanly and effortlessly flows from one side of the unit to the other.

Versatility is a key feature of the Outback Curved Roof. It is available attached to the home or as a freestanding unit which makes it perfect for a wide range of applications; anything from a covered walkway to the main feature of an entertaining area.

Integrate with other Stratco Outback products

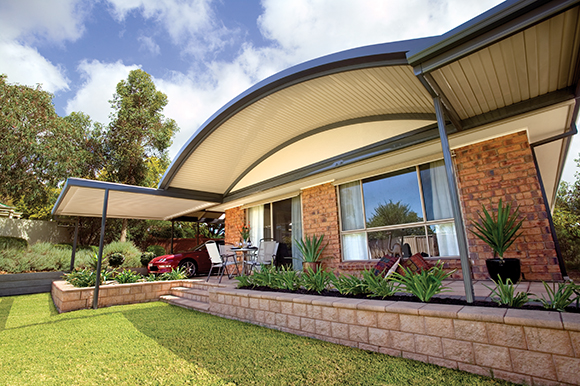

The Outback Curved Roof has been designed to integrate with other Stratco Outback products, such as the Outback Flat Roof, Pergola, or the new Sunroof. When combined with flat roof or pergola sections it becomes part of a system, with the elegant curved roof forming the central feature of the design.

Choice of styles

Two styles of Outback Curved Roof are available; Clearspan and Multispan. Each style has its own type of roofing material.

Clearspan Curved Roof

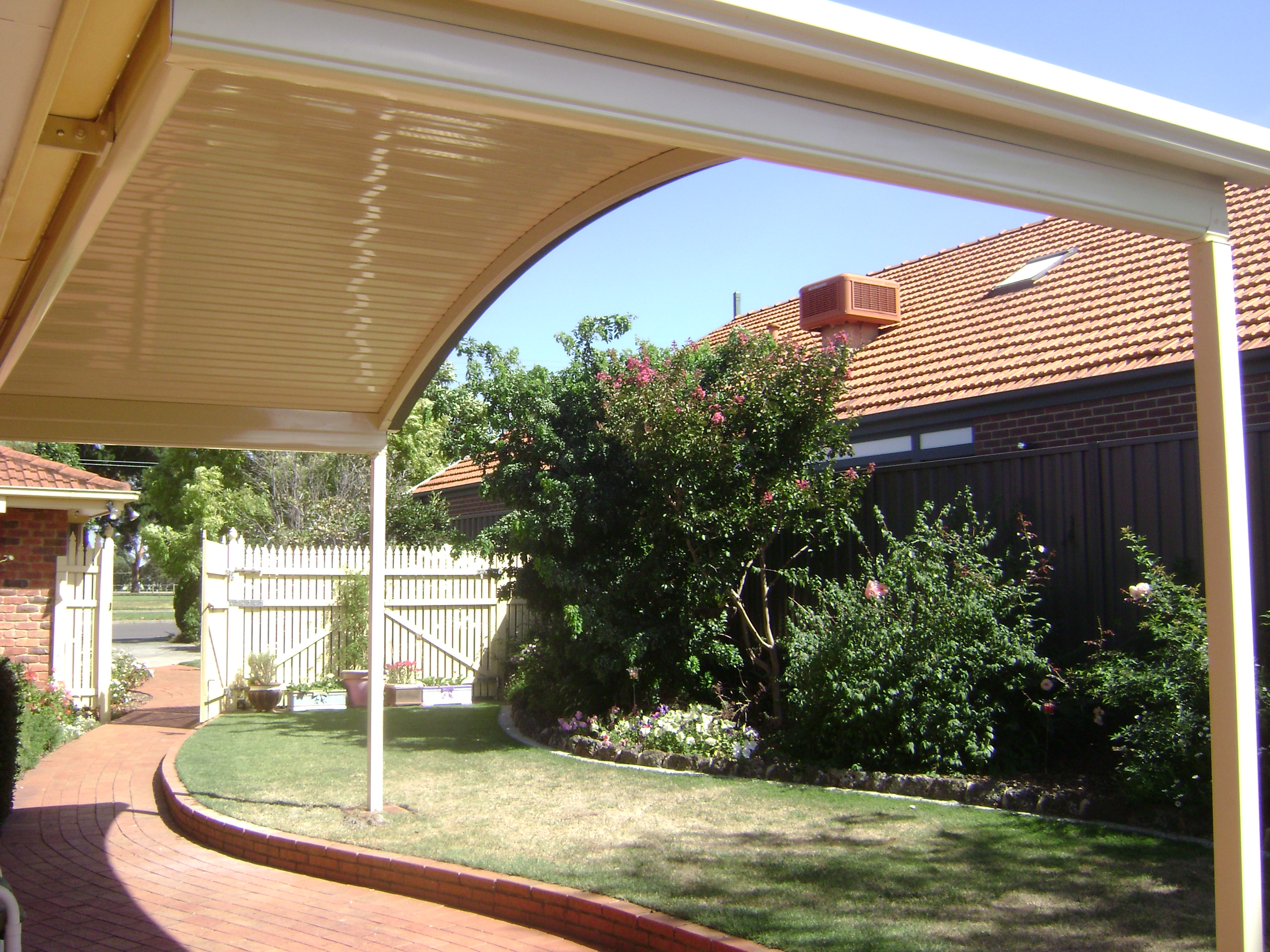

The Stratco Outback Clearspan Curved Roof uses Outback Deck running perpendicular to the front rafter which creates a clean streamlined look. The roof area is left clean and uncluttered with a ceiling like appearance from beneath. Outback Deck is supplied flat and easily curved on site to the required radius during the installation process.

Multispan Curved Roof

The Stratco Outback Multispan Curved Roof Verandah uses corrugated iron (CGI) running parallel to the front rafter on purlins. Polycarbonate roofing can also be used on the Multispan Curved Roof, but only for radii greater than 3m, which translates into a span greater than 2.7m. The look achieved with this material is light and airy. CGI is supplied precurved to the required radius and simply needs to be placed on top of the purlins and screwed in position, making installation easy.

Create impressive visual effects

The different roofing materials create unique visual effects, as does the size of the radius. A larger radius will create a large open area similar in effect to an Outback Gable, while a small radius creates a unique dormer style turret with a vastly different feel. A unique effect can also be gained by using several smaller radius areas separated by flat roof areas or using larger radius to create an impressive wave-like roof.

Design excellence

Curved flashings complete the Outback Curved Roof Verandah, ensuring that the unit is weather resistant. The front curved flashing on the Stratco Outback Clearspan also acts as a front gutter, discretely carrying water into the main gutter on the unit. Each flashing is individually curved to suit each job and adds to the clean stylish appearance of the Curved Roof. These curved flashings are available in a range of colours to suit the Outback range.

Clean, wide spanning ability

The Outback Curved Roof uses curved 100 x 50mm rectangle hollow section (RHS) for rafters, creating structurally strong beams that are able to achieve clean wide spans.

The maximum opening width for the curved roof is 6.6 metres, with the minimum opening 1.2 metres. Two different thicknesses of beam are available; 3mm which is able to achieve the radius required for spans greater than 2.1 metres, and 4mm which is able to achieve the radius required for spans as narrow as 1.2 metres wide.The beams are powder coated to match the range of Outback colours available.

Installation is quick and easy

Installation of the Outback Curved Roof Verandah is quick and easy. The curved rafter has no intermediate joins and is simply attached to the valley beams using curve-to-valley brackets. These brackets are made from strong 1mm galvanised steel which has been powder coated to suit the Outback range of colours. The brackets use the same number and type of fixings as the rafter-to-valley brackets, and have been designed to complement the appearance of the unit.

With Outdoor Impressions you can feel confident that your Stratco Outback verandah, patio, pergola or carport will be installed by a registered builder, licensed plumber and all relevant permits will be taken care of. We look forward installing a verandah at your place, anywhere in Melbourne.
